Product Introduction
Ball mill is a device that grinds and pulverizes materials after they are crushed.Ball mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, glass and ceramics and other production industries to grind various ores and other grindable materials in dry or wet manner.
Product Advantages
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.
Fully hydraulically operated, it is easy to use.
It is easily automated, significantly improving its reliability and service life.

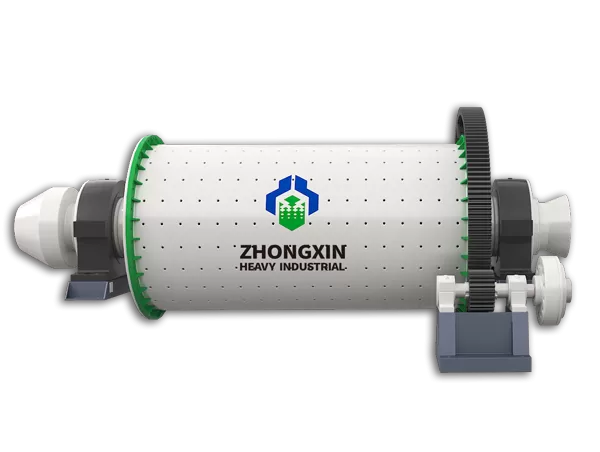

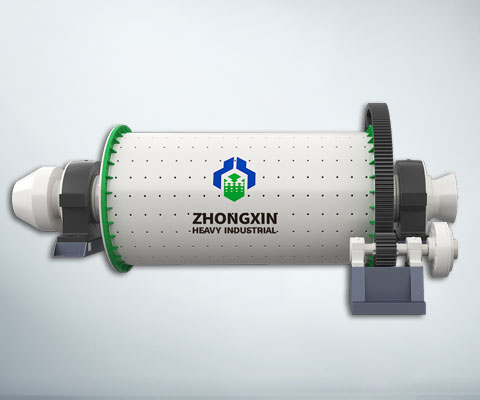

Product Photos
Specification
| Number | Model | Cylinder diameter(mm) | Cylinder length(mm) | Cylinder effective volume(m³) | Maximum ball loading(t) | Operating speed(r/min) | Main motor power(kW) |
| 1 | MQ-09×□ | 900 | 900~1800 | 0.45~0.9 | 0.96~1.9 | 34.8~39.5 | 7.5~15 |
| 2 | MQ-12×□ | 1200 | 1200~2400 | 1.1~2.2 | 2.4~4.7 | 29.8~33.9 | 22~45 |
| 3 | MQ-15×□ | 1500 | 1500~3000 | 2.2~4.5 | 4.7~9.7 | 26.5~30.1 | 55~90 |
| 4 | MQ-21×□ | 2100 | 2200~4000 | 7~12 | 15~27 | 22.3~25.3 | 140~250 |
| 5 | MQ-24×□ | 2400 | 2400~4500 | 10~18 | 21~39 | 20.8~23.6 | 210~355 |
| 6 | MQ-27×□ | 2700 | 2100~5400 | 11~28 | 23~59 | 19.6~22.2 | 260~630 |
| 7 | MQ-32×□ | 3200 | 3000~6400 | 22~47 | 46~98 | 17.9~20.4 | 500~1120 |
| 8 | MQ-36×□ | 3600 | 3900~7000 | 36~64 | 75~135 | 16.9~19.2 | 1000~1800 |
