PXH Series gyratory crusher,zhongxin gyratory crusher, cone crusher-Jiaozuo zhongxin heavy industry

PXH Series Gyratory Crusher

Feeding size:

1065mm-1525mm

Power:

375-1200kw

Type:

Secondary Crushing

Processed Materials

Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications

Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

+86 13676922906

sales@zxcrusher.com

Product Introduction

PXH series gyratory crusher mechanical, hydraulic, electrical, automation and intelligent control technology, it has low use cost, and convenient maintenance and adjustment, which can provide users with efficient and intelligent capacity coarse crushing solutions.

Product Advantages

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

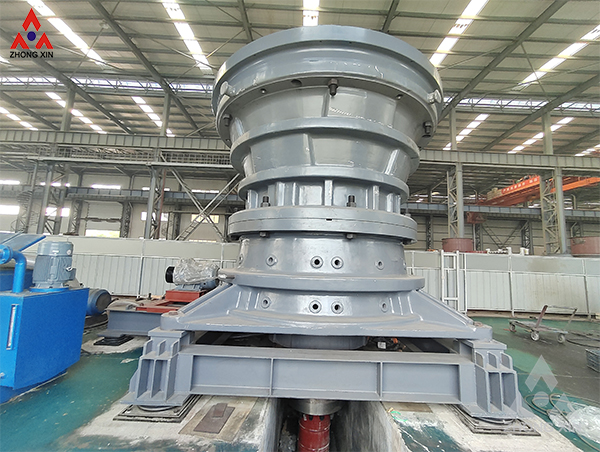

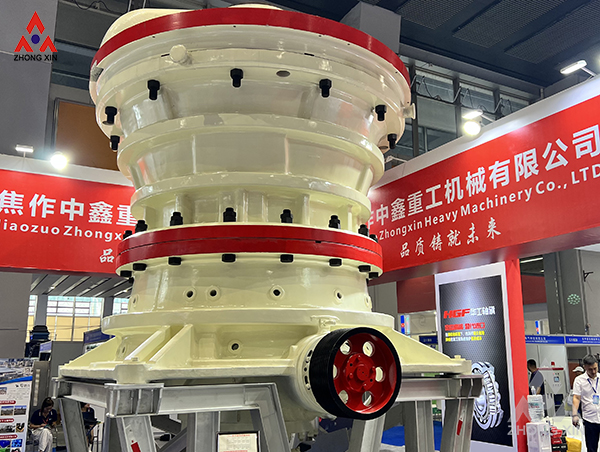

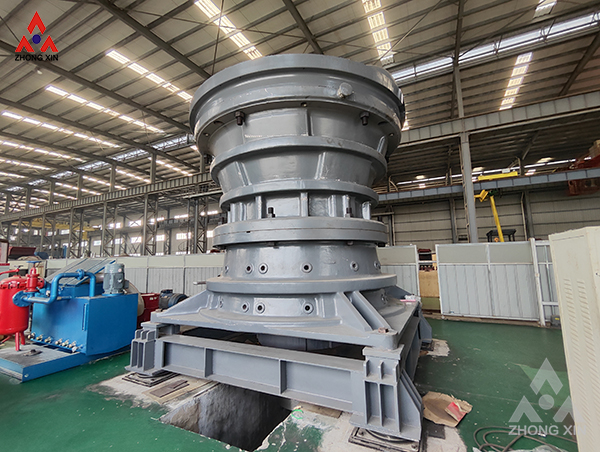

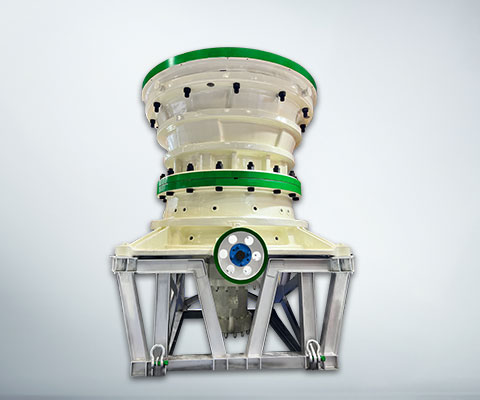

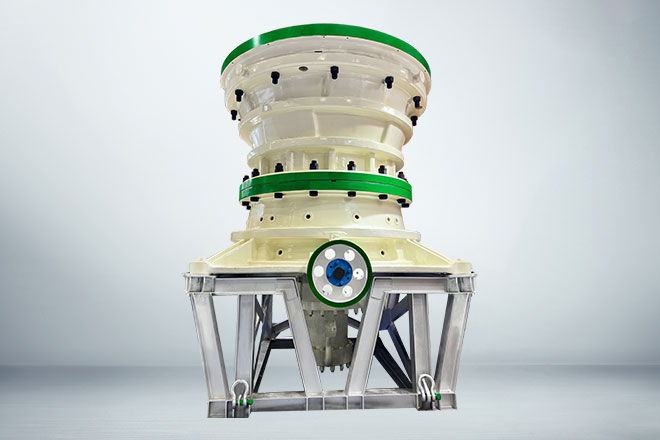

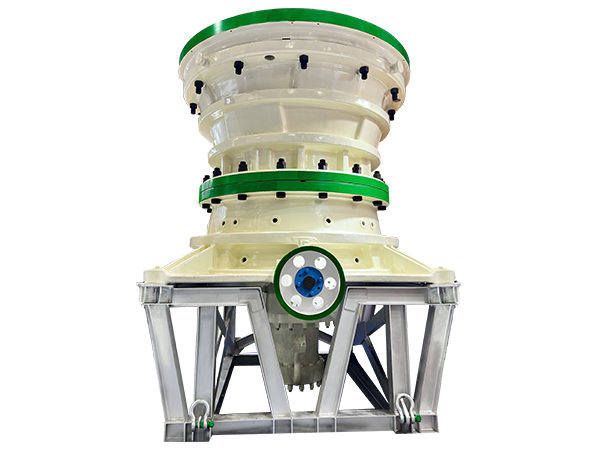

Product Photos

Specification

Model	Feeding size mm(in)	Pinion RPM	Power kW（HP）	125mm (5.0’’)	140mm (5.5")	150mm (6.0’’)	165mm (6.5’’)	175mm (7.0’’)	190mm (7.5’’)	200mm (8.0’’)	215mm (8.5’’)	230mm (9.0’’)	240mm (9.5’’)	250mm (10.0’’)
42-65	1065 (42)	600	375 (500)	—	2010 (2220)	2335 (2575)	2515 (2775)	2870 (3165)	—	—	—	—	—	—
50-65	1270 (50)	600	375 (500)	—	—	2395 (2645)	2780 (3065)	2935 (3240)	—	—	—	—	—	—
54-75	1370 (54)	600	450 (600)	—	—	2885 (3185)	2985 (3295)	3145 (3470)	3335 (3680)	3485 (3845)	—	—	—	—
62-75	1575 (62)	600	450 (600)	—	—	2890 (3190)	3615 (3985)	3815 (4210)	4205 (4640)	4330 (4775)	—	—	—	—
60-89	1525 (60)	600	600 (800)	—	—	—	4195 (4625)	4540 (5005)	5080 (5600)	5295 (5840)	5530 (6100)	5805 (6400)	—	—
60-110E	1525 (60)	600	1200 (1600)	—	—	—	—	5535 (6100)	6945 (7655)	7335 (8085)	7570 (8345)	8280 (9130)	8595 (9475)	8890 (9800)

Model

Feeding size

mm(in)

Pinion

RPM

Power

kW（HP）

125mm

(5.0’’)

140mm

(5.5")

150mm

(6.0’’)

165mm

(6.5’’)

175mm

(7.0’’)

190mm

(7.5’’)

200mm

(8.0’’)

215mm

(8.5’’)

230mm

(9.0’’)

240mm

(9.5’’)

250mm

(10.0’’)

42-65

1065

(42)

600

375

(500)

—

2010

(2220)

2335

(2575)

2515

(2775)

2870

(3165)

—

50-65

1270

(50)

600

375

(500)

—

2395

(2645)

2780

(3065)

2935

(3240)

—

54-75

1370

(54)

600

450

(600)

—

2885

(3185)

2985

(3295)

3145

(3470)

3335

(3680)

3485

(3845)

—

62-75

1575

(62)

600

450

(600)

—

2890

(3190)

3615

(3985)

3815

(4210)

4205

(4640)

4330

(4775)

—

60-89

1525

(60)

600

(800)

—

4195

(4625)

4540

(5005)

5080

(5600)

5295

(5840)

5530

(6100)

5805

(6400)

—

60-110E

1525

(60)

600

1200

(1600)

—

5535

(6100)

6945

(7655)

7335

(8085)

7570

(8345)

8280

(9130)

8595

(9475)

8890

(9800)
