Home > Screening and Sand Washing Equipment > XL Series Spiral Sand Washing Machine

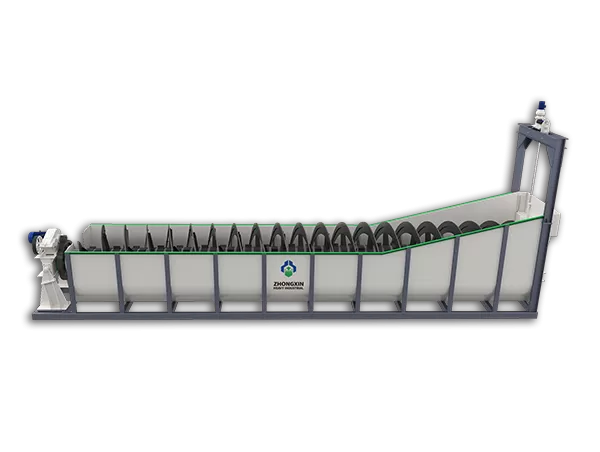

XL Series Spiral Sand Washing Machine

  1. Capacity (t/h)::

    20-250

  2. Slot length(mm)::

    7225-10300

  3. Feeding Size(mm)::

    ≦10

  • Water Consumption:
  • 6-300

  • Diameter (mm):
  • 610-1500

+86 13676922906
sales@zxcrusher.com

Product Introduction

XL Series Spiral Sand Washing Machine application field: widely used in stone factories, mixing stations, building materials, water saving and hydropower.The XL series spiral sand washer is a spiral cleaning device. It has low power, good performance and good sealing. It reduces the loss of fine sand and stone dust during work. It guarantees the cleaning and dewatering of the sand mechanism in the sand production line.

Product Advantages

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

Fully hydraulically operated, it is easy to use.

It is easily automated, significantly improving its reliability and service life.

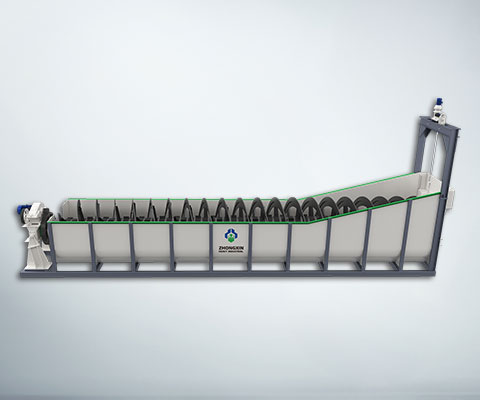

Product Photos


Specification

Model

Screw diameter(mm)

Length of Chute (mm)

Max feeding size(mm)

Capacity (t/h)

Speed (r/min)

Power (kw)

Water Consumption(t/h)

Overall dimension(L×W×H)(mm)

Weight(t)

XL508

508

6705

≦10

20

38

5.5

6-60

8000*2343*1430

2.67

XL610

610

7225

≦10

40-50

32

7.5

6-63

8000*2050*1400

3.80

XL762

762

7620

≦10

50-75

26

11

9-63

8545*2650*3862

5.23

XL920

920

8026

≦10

100

18

11

10-80

8715X1632X2075

4.6

2XL920

920

8026

≦10

150-180

18

2*11

20-160

8715X2602X2075

7.9

XL1115

1115

8532

≦10

175

18

15

20-150

9231X1833X2126

5.6

2XL1115

1115

8532

≦10

200-250

18

2*15

40-300

9231X2995X2126

10
